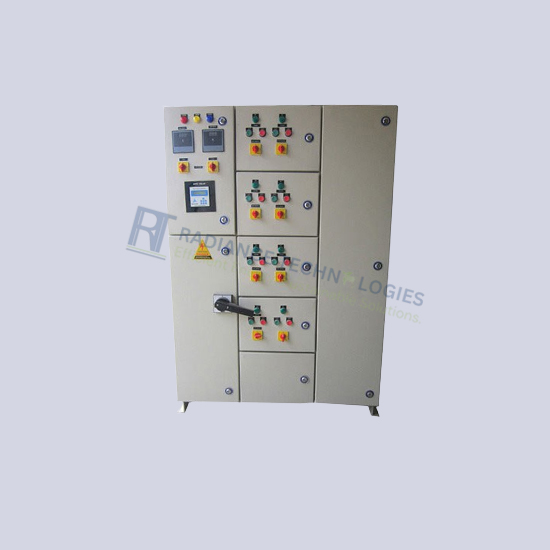

Automatic Power Factor Control Panel (APFC)
An Automatic Power Factor Control Panel (APFC) is an electrical control system used to optimize the power factor in industrial and commercial power distribution systems. The power factor is a measure of how effectively electrical power is being used; a lower power factor indicates that more reactive power is being used, which can lead to inefficiencies and higher electricity costs. The APFC panel automatically adjusts the amount of capacitive load in the system to maintain an optimal power factor, improving the overall efficiency of the electrical system.
Benefits
- Improves the power factor of electrical systems, reducing penalties
- Enhances the efficiency of electrical equipment and reduces energy consumption
- Minimizes losses in the distribution system
- Reduces the burden on transformers and generators
- Automatic operation, no manual intervention required
- Improves system stability and reduces voltage fluctuations
- Helps in maintaining optimum load distribution across the system
- Protects against overloading and enhances the lifespan of equipment
Specifications
- Voltage range: 230V to 415V AC (or as per system requirements)
- Current capacity: 10A to 2000A (depending on system size)
- Power factor range: 0.7 to 1.0 (for optimal correction)
- Control type: Microprocessor-based, intelligent and automatic switching
- Number of steps: 3 to 12 steps (depending on load requirements)
- Capacitor bank size: 5 kVAR to 1000 kVAR (depending on the load)
- Protection features: Overload, short-circuit, and phase-failure protection
- Compliance: IEC, IS, and UL standards for safety and performance
- Display: Digital display for monitoring power factor and system performance
