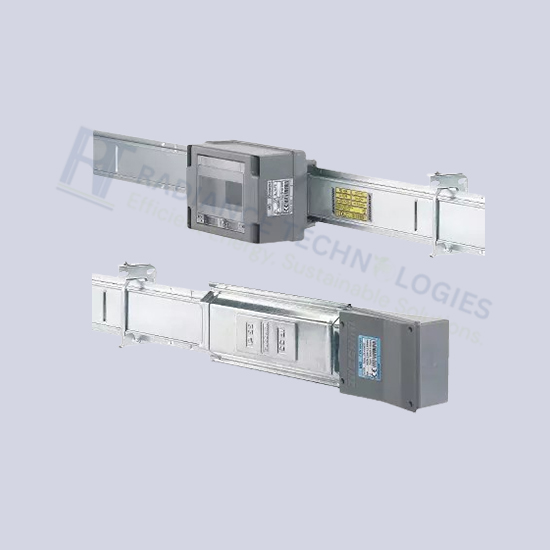

Electrical Bus Bar
An electrical bus bar is a metallic strip or bar, typically made of copper or aluminum, used for power distribution in electrical systems. It efficiently conducts electricity with minimal power loss, making it an essential component in switchgear, distribution panels, substations, and industrial applications. Bus bars offer several advantages, including improved electrical conductivity, reduced wiring complexity, and enhanced safety by minimizing overheating and faults. They come in various configurations, such as solid, laminated, and flexible designs, catering to different current and voltage requirements. Additionally, bus bars are durable, corrosion-resistant, and easy to install, making them a preferred choice for reliable and efficient electrical power distribution.
Benefits
- Bus bars provide a streamlined and organized way to distribute electrical power across various circuits.
- They reduce wiring complexity and save space compared to traditional cabling.
- Made from copper or aluminum, bus bars offer excellent electrical conductivity, minimizing power loss.
- Bus bars reduce electrical resistance, overheating, and the risk of faults, ensuring a safer electrical system.
Specifications
- Copper (high conductivity, corrosion-resistant) or Aluminum (lightweight, cost-effective)
- Varies from a few amperes to thousands of amperes
- Can range from low-voltage (LV) to medium-voltage (MV) and high-voltage (HV) applications
- Depends on the current-carrying capacity, typically measured in square millimeters (mm²)
